HS100 - Brass Compression Fittings

Pipe fittings for use with copper tubing, stainless steel tubing and plastic tubing

Honson HS100 brass compression fittings are specially designed for application in hot and cold water system and heating systems. They are ideally compatible with copper, low carbon steel, stainless steel and plastic pipes. You can safely install a Honson HS100 brass compression fitting by compressing the brass ring onto the pipe.

Honson HS100 compression fittings are suitable for use under the following working pressures and temperatures.
Medium Service temp up to ºC Max working pressure
bar psi
Water or Light Mineral Oils 10 to 54 mm sizes 30 16 230
65 10 145
110 6 87
120 5 75
Saturated Steam 120 3 45
LPG & Natural Gas 10 to 28 mm sizes only 30 1 15

Structure

HS100 - Brass Compression Fittings
Product Technical Document
Features
  • Suitable for gas, compressed air and water application
  • Wide range of sizes from 8mm to 54mm
  • WRAS Approved, compliant with the relevant British standards EN1254-2
  • SABS Approved, compliant with SANS 1067-1:2005
  • DVGW Approved
  • Marked for full traceability
  • High quality copper material options: CW617N-4MS, DZR
  • Surface treatment options: raw, chrome-plated, nickel-plated
  • Fast and easy installation
  • Eliminate the harsh noise during installation
  • Straight Coupler
  • Elbow
  • Tee
  • Tap Connector
  • End Cap
  • Tank Connector
  • Reducing Coupler
Brass Compression Straight Coupler
Equal Straight Coupler C×C, HS100-001
  • Equal Straight Coupler C×C, HS100-001
  • Equal Straight Coupler C×C, HS100-001
Inquiry
SIZE D L
8×8 8 19.5
10×10 10 21.5
12×12 12 22.5
14×14 14 22.5
15×15 15 22.5
16×16 16 22.5
18×18 18 23.5
22×22 22 24
28×28 28 28
35×35 35 31.5
42×42 42 32.5
54×54 54 36
15×15×82mm 15 82
22×22×82mm 22 82

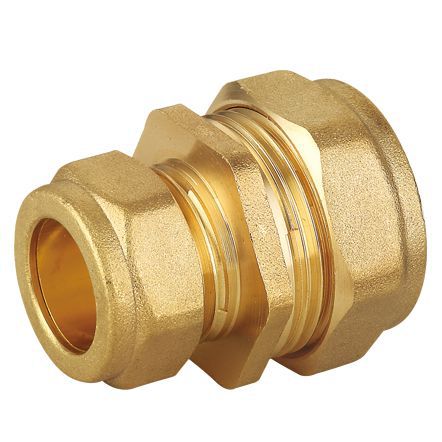

Reducing Straight Coupler C×C, HS100-002
  • Reducing Straight Coupler C×C, HS100-002
  • Reducing Straight Coupler C×C, HS100-002
Inquiry
SIZE D D1 L
10×8 10 8 20.5
12×8 12 8 22
12×10 12 10 22
15×8 15 8 21
15×10 15 10 22
15×12 15 12 22.5
16×14 16 14 22.5
16×15 16 15 22.5
18×15 18 15 23
22×15 22 15 23
22×18 22 18 24
28×15 28 15 25.5
28×22 28 22 26
Female Straight Coupler C×FI, HS100-003
  • Female Straight Coupler C×FI, HS100-003
  • Female Straight Coupler C×FI, HS100-003
Inquiry
SIZE D G L L1
8×1/4" F 8 1/4" 19 9
8×3/8" F 8 3/8" 19 9
10×1/4" F 10 1/4" 20 9
10×3/8" F 10 3/8" 20 9
10×1/2" F 10 1/2" 22.5 11.5
12×3/8" F 12 3/8" 20.5 9
12×1/2" F 12 1/2" 23 11.5
14×3/8" F 14 3/8" 21 9
14×1/2" F 14 1/2" 23 11.5
14×3/4" F 14 3/4" 24.5 13
15×1/4" F 15 1/4" 22.5 11
15×3/8" F 15 3/8" 20.5 9
15×1/2" F 15 1/2" 23 11.5
15×3/4" F 15 3/4" 24.5 13
15×1" F 15 1" 26 14
16×1/2"F 16 1/2" 23 11.5
16×3/4" F 16 3/4" 24.5 13
18×1/2" F 18 1/2" 23.5 11.5
18×3/4" F 18 3/4" 25 13
22×1/2" F 22 1/2" 23.5 11.5
22×3/4" F 22 3/4" 24.5 13
22×1" F 22 1" 26.5 14
28×3/4" F 28 3/4" 28 13
28×1" F 28 1" 28.5 14
35×1 1/4"F 35 1.1/4" 31.5 16
42×1 1/2" F 42 1.1/2" 33 16
54×2" F 54 2" 38.5 19.5
Male Straight Coupler C×MI, HS100-004
  • Male Straight Coupler C×MI, HS100-004
  • Male Straight Coupler C×MI, HS100-004
Inquiry
SIZE D G L L1
8×1/8"M 8 1/8" 18.5 7
8×1/4"M 8 1/4" 20 8.5
8×3/8"M 8 3/8" 20.5 9
8×1/2"M 8 1/2" 21 9.5
10×1/4"M 10 1/4" 21 8.5
10×3/8"M 10 3/8" 21.5 9
10×1/2"M 10 1/2" 22 9.5
12×3/8"M 12 3/8" 22 9
12×1/2"M 12 1/2" 22.5 9.5
14×3/8"M 14 3/8" 22 9
14×1/2"M 14 1/2" 22.5 9.5
15×1/4"M 15 1/4" 21.5 8.5
15×3/8"M 15 3/8" 22 9
15×1/2"M 15 1/2" 22.5 9.5
15×3/4"M 15 3/4" 25 11
16×1/2"M 16 1/2" 22.5 9.5
18×1/2"M 18 1/2" 23.5 9.5
22×1/2"M 22 1/2" 23.5 9.5
22×3/4"M 22 3/4" 25.5 11
22×1"M 22 1" 28 12.5
28×3/4"M 28 3/4" 28 11
28×1"M 28 1" 29.5 12.5
28×11/4"M 28 1.1/4" 32 14.5
35×1 1/4"M 35 1.1/4" 33 14.5
35×1 1/2"M 35 1.1/2" 34.5 16
42×1 1/2"M 42 1.1/2" 35 16
54×2"M 54 2" 38 17
Male Straight Coupler C×MI, HS100-021
  • Male Straight Coupler C×MI, HS100-021
  • Male Straight Coupler C×MI, HS100-021
Inquiry
SIZE D G L L1
8×1/4"M 8 1/4" 21.5 8.5
8×3/8"M 8 3/8" 23 9
8×1/2"M 8 1/2" 23.5 9.5
10×1/4"M 10 1/4" 22.5 8.5
10×3/8"M 10 3/8" 23 9
10×1/2"M 10 1/2" 24.5 9.5
15×1/4"M 15 1/4" 24 8.5
15×3/8"M 15 3/8" 24.5 9
15×1/2"M 15 1/2" 24 9.5
15×3/4"M 15 3/4" 27 11
18×1/2"M 18 1/2" 26.5 9.5
18×3/4"M 18 3/4" 27.5 11
22×1/2"M 22 1/2" 26 9.5
22×3/4"M 22 3/4" 27.5 11
22×1"M 22 1" 29.5 12.5
22×11/4"M 22 1.1/4" 33 14.5
28×1"M 28 1" 31.5 12.5
28×11/4"M 28 1.1/4" 34.5 14.5
35×1 1/4"M 35 1.1/4" 35 14.5
42×1 1/2"M 42 1.1/2" 36 16
54×2"M 54 2" 40 17
Crossover Coupling C×C, HS100-016
  • Crossover Coupling C×C, HS100-016
  • Crossover Coupling C×C, HS100-016
Inquiry
SIZE D L
15 15 87
18 18 101.5
22 22 121
Brass Compression Elbow
Equal / Reducing Elbow C×C, HS100-005
  • Equal / Reducing Elbow C×C, HS100-005
  • Equal / Reducing Elbow C×C, HS100-005
Inquiry
SIZE D D1 L H
8×8 8 8 15 15
10×10 10 10 17 17
12×12 12 12 17.5 17.5
14×14 14 14 20.5 20.5
15×15 15 15 20.5 20.5
16×16 16 16 21 21
18×18 18 18 23.5 23.5
22×15 22 15 23 23
22×22 22 22 25 25
28×15 28 15 23 26.5
28×22 28 22 34 26
28×28 28 28 29.5 29.5
35×35 35 35 35.5 35.5
42×42 42 42 40 40
54×54 54 54 47 47
Female Elbow C×FI, HS100-006
  • Female Elbow C×FI, HS100-006
  • Female Elbow C×FI, HS100-006
Inquiry
SIZE D G L H H1
8×1/4"F 8 1/4" 18 14 9
10×3/8"F 10 3/8" 20 16.5 10
12×1/2"F 12 1/2" 22.5 18 11.5
14×1/2"F 14 1/2" 22.5 19 11.5
15×1/2"F 15 1/2" 22.5 19 11.5
15×3/4"F 15 3/4" 26 20.5 13
16×1/2"F 16 1/2" 22.5 19 11.5
18×1/2"F 18 1/2" 23.5 20.5 11.5
18×3/4"F 18 3/4" 25.5 22 13
22×1/2"F 22 1/2" 23 22.5 11.5
22×3/4"F 22 3/4" 26.5 24 13
22×1"F 22 1" 30 25 14
28×1"F 28 1" 31 27.5 14
35×1 1/4"F 35 1.1/4" 37 33 16
42×1 1/2"F 42 1.1/2" 41.5 36.5 16
54×2"F 54 2" 49 46 19.5
Male Elbow C×MI, HS100-007
  • Male Elbow C×MI, HS100-007
  • Male Elbow C×MI, HS100-007
Inquiry
SIZE D G L H H1
8×1/4"M 8 1/4" 16.5 18 8.5
10×1/4"M 10 1/4" 16.5 19 8.5
10×3/8"M 10 3/8" 19 21 10
12×1/2"M 12 1/2" 21 21 9.5
14×1/2"M 14 1/2" 21 23 9.5
15×1/4"M 15 1/4" 19 22 8.5
15×3/8"M 15 3/8" 19 22.5 9
15×1/2"M 15 1/2" 21 23 9.5
15×3/4"M 15 3/4" 24 24.5 11
16×1/2"M 16 1/2" 21 24 9.5
18×1/2"M 18 1/2" 21 25 9.5
18×3/4"M 18 3/4" 24 27 11
22×1/2"M 22 1/2" 21.5 27 9.5
22×3/4"M 22 3/4" 24.5 28.5 11
22×1"M 22 1" 28 30 12.5
28×1"M 28 1" 29.5 34 12.5
35×1 1/4"M 35 1.1/4" 36.5 40.5 14.5
42×1 1/2"M 42 1.1/2" 39 45 16
54×2"M 54 2" 46 55 17
Wall Plate Elbow C×FI, HS100-011
  • Wall Plate Elbow C×FI, HS100-011
  • Wall Plate Elbow C×FI, HS100-011
Inquiry
SIZE D G L H H1 H2
12×1/2"F 12 1/2" 22.5 30 18 11.5
14×1/2"F 14 1/2" 22.5 33 19 11.5
15×1/2"F 15 1/2" 22.5 33 19 11.5
16×1/2"F 16 1/2" 22.5 34 19 11.5
18×1/2"F 18 1/2" 23.5 41 24 15
18×3/4"F 18 3/4" 28 43 26 16.5
22×1/2"F 22 1/2" 29 50 30.5 15
22×3/4"F 22 3/4" 26.5 42 24 13

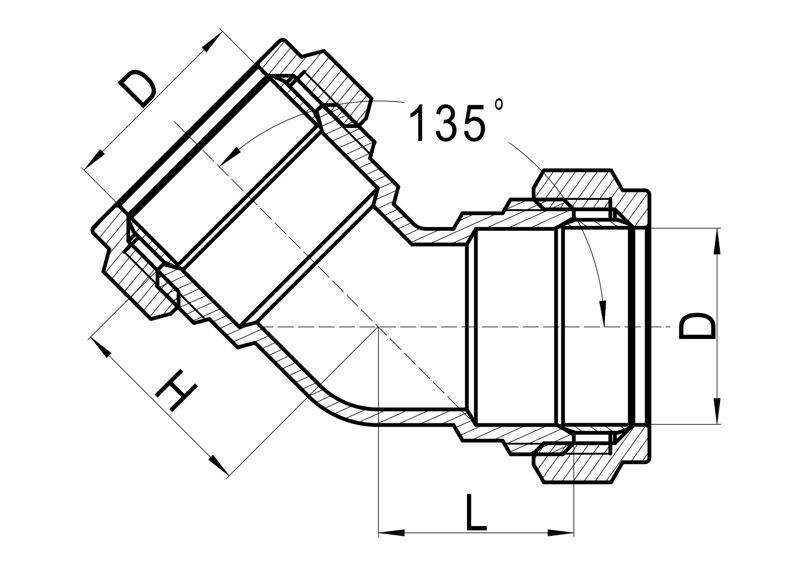

45 Degree Elbow, HS100-020
  • 45 Degree Elbow, HS100-020
  • 45 Degree Elbow, HS100-020
Inquiry
SIZE D L H
15×45° 15 18 18
22×45° 22 22 22
28×45° 28 26 26
Brass Compression Tee
Equal Tee C×C×C, HS100-008
  • Equal Tee C×C×C, HS100-008
  • Equal Tee C×C×C, HS100-008
Inquiry
SIZE D L H
8×8×8 8 30 15
10×10×10 10 34 17
12×12×12 12 35 17.5
14×14×14 14 41 20.5
15×15×15 15 41 20.5
16×16×16 16 42 21
18×18×18 18 47 23.5
22×22×22 22 50 25
28×28×28 28 59 29.5
35×35×35 35 71 35.5
42×42×42 42 80 40
54×54×54 54 94 47
Reducing Tee C×C×C, HS100-009
  • Reducing Tee C×C×C, HS100-009
  • Reducing Tee C×C×C, HS100-009
Inquiry
SIZE D D1 D2 L1 L2 H
15×15×22 15 15 22 23.5 23.5 21.5
18×18×15 18 18 15 22 22 24
18×15×18 18 15 18 24 22 24
22×15×15 22 15 15 23 19.5 23
22×15×22 22 15 22 25 23.5 25
22×22×15 22 22 15 23 23 23.5
22×22×18 22 22 18 23 23 27
22×22×28 22 22 28 28 28 28.5
28×15×15 28 15 15 23 20.5 26.5
28×22×15 28 22 15 24.5 21 28
28×28×15 28 28 15 23 23 26.5
28×15×28 28 15 28 29.5 26.5 29.5
28×22×22 28 22 22 28.5 26.5 29
28×28×22 28 28 22 26 26 29
28×22×28 28 22 28 29.5 27 29.5
35×35×15 35 35 15 26 26 34
35×35×22 35 35 22 31 31 34
35×35×28 35 35 28 31 31 34
42×42×15 42 42 15 28 28 38.5
42×42×22 42 42 22 28 28 38.5
42×42×28 42 42 28 35 35 40
42×42×35 42 42 35 35 35 40
54×54×15 54 54 15 35.5 35.5 46
54×54×22 54 54 22 35.5 35.5 46
54×54×28 54 54 28 35.5 35.5 46
54×54×35 54 54 35 42 42 46.5
54×54×42 54 54 42 42 42 46.5
Female Tee C×C×FI, HS100-010
  • Female Tee C×C×FI, HS100-010
  • Female Tee C×C×FI, HS100-010
Inquiry
SIZE D G L H H1
12×12×1/2“F 12 1/2" 45 18 11.5
14×14×1/2“F 14 1/2" 45 19 11.5
15×15×1/2“F 15 1/2" 45 19 11.5
16×16×1/2“F 16 1/2" 45 19 11.5
18×18×1/2“F 18 1/2" 47 20.5 11.5
18×18×3/4“F 18 3/4" 51 22 13
22×22×1/2”F 22 1/2" 46 22.5 11.5
22×22×3/4”F 22 3/4" 53 24 13
28×28×1/2”F 28 1/2" 52 24.5 11.5
28×28×3/4”F 28 3/4" 55 26.5 13
28×28×1”F 28 1" 62 27.5 14
Brass Compression Tap Connector
Straight Tap Connector C×FI, HS100-014
  • Straight Tap Connector C×FI, HS100-014
  • Straight Tap Connector C×FI, HS100-014
Inquiry
SIZE D G L
15×1/2"F 15 1/2" 31.5
15×3/4"F 15 3/4" 33.5
22×3/4"F 22 3/4" 34.5
Bent Tap Connector C×FI, HS100-015
  • Bent Tap Connector C×FI, HS100-015
  • Bent Tap Connector C×FI, HS100-015
Inquiry
SIZE D G L H
15×1/2"F 15 1/2" 21 27.5
22×3/4"F 22 3/4" 34 22
Brass Compression End Cap
Stop End, HS100-013
  • Stop End, HS100-013
  • Stop End, HS100-013
Inquiry
SIZE D L
8 8 11
10 10 12
12 12 12.5
15 15 12.5
18 18 13.5
22 22 13.5
28 28 15.5
35 35 18
42 42 19
54 54 20
Brass Compression Tank Connector
Water Tank Connector, HS100-012
  • Water Tank Connector, HS100-012
  • Water Tank Connector, HS100-012
Inquiry
SIZE D L
15 15 36
22 22 37
28 28 37
35 35 42
42 42 44
54 54 45
Male Brass Water Tank Connector C×MI, HS100-019
  • Male Brass Water Tank Connector C×MI, HS100-019
  • Male Brass Water Tank Connector C×MI, HS100-019
Inquiry
SIZE D G L L1
15×1/2" 15 1/2" 55 37.5
22×3/4" 22 3/4" 56.5 37.5
28×1" 28 1" 61 40
35×1"1/4 35 1.1/4" 66.5 43
42×1"1/2 42 1.1/2" 73.5 47
54×2" 54 2" 77 50
Brass Compression Reduced Set Component
Reduced Piece C×C, HS100-017
  • Reducing Coupling C×C, HS100-017
  • Reducing Coupling C×C, HS100-017
Inquiry
SIZE D D1 L
12×8 12 8 15.5
15×8 15 8 18.5
15×10 15 10 18.5
22×15 22 15 18.5
28×15 28 15 20.5
28×22 28 22 20.5
35×22 35 22 21
35×28 35 28 21
Reduced Set (Three Pieces) C×C, HS100-018
  • Three Piece Reducing Set C×C, HS100-018
  • Three Piece Reducing Set C×C, HS100-018
Inquiry
SIZE D D1 L L1
10×8 10 8 10 4
12×8 12 8 10 4
15×8 15 8 10 4
15×10 15 10 10 4
15×12 15 12 10 4
22×15 22 15 10 4
28×15 28 15 13 5
28×22 28 22 13 5
35×15 35 15 13 5.5
35×22 35 22 13 5.5
35×28 35 28 13 5.5
42×15 42 15 14 6
42×22 42 22 14 6
42×28 42 28 14 6
42×35 42 35 14 6
54×22 54 22 16 6.5
54×28 54 28 16 6.5
54×35 54 35 16 6.5
54×42 54 42 16 6.5
Tags
  • plumbing parts
  • threaded pipe fittings
  • tubular fittings
  • capillary elbow
  • plumbing pipe fitting
More Brass Fittings for Copper Pipe
Other Products
Brass Fittings for PE Pipe

Brass Fittings for PE Pipe

As a professional brass fitting manufacturer, Honson offers various brass fittings for PE pipe, such as heavy and light duty brass compression fittings, brass compression fittings, brass irrigation fittings.
Brass Threaded Fittings

Brass Threaded Fittings

Honson HS190 brass threaded fittings are well-suited for the use in a wide range of applications such as heating, rain water, plumbing system and sanitary system.

Brass Fittings for PEX Pipe

Brass Fittings for PEX Pipe

Honson produces various brass fittings for PEX pipes, such as brass compression fittings, brass PEX insert fittings for USA and brass sliding sleeve fittings.
Brass Fittings for PEX-AL-PEX Pipe

Brass Fittings for PEX-AL-PEX Pipe

Honson is specialized in manufacturing a variety of brass fittings for PEX-AL-PEX pipe, including brass press fittings and compression fittings.
Brass Garden Accessories

Brass Garden Accessories

Honson offers an assortment of brass garden hose connectors in various sizes, which is perfectly suitable for domestic and commercial plumbing applications.
